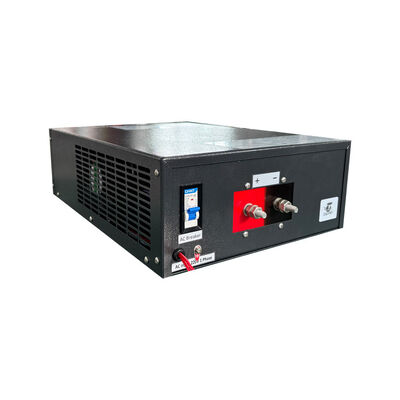

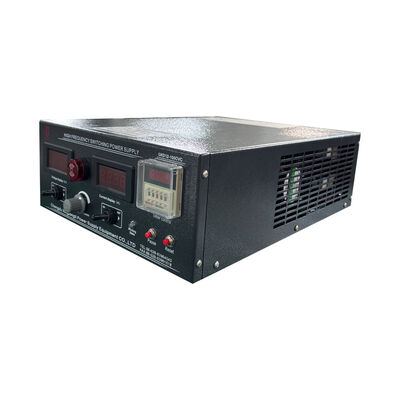

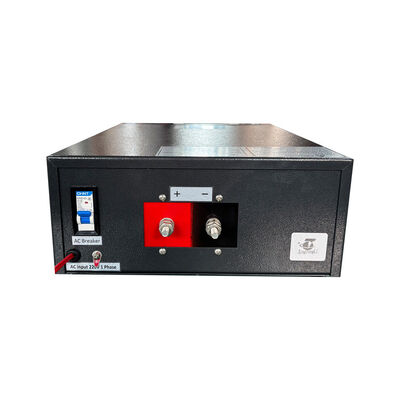

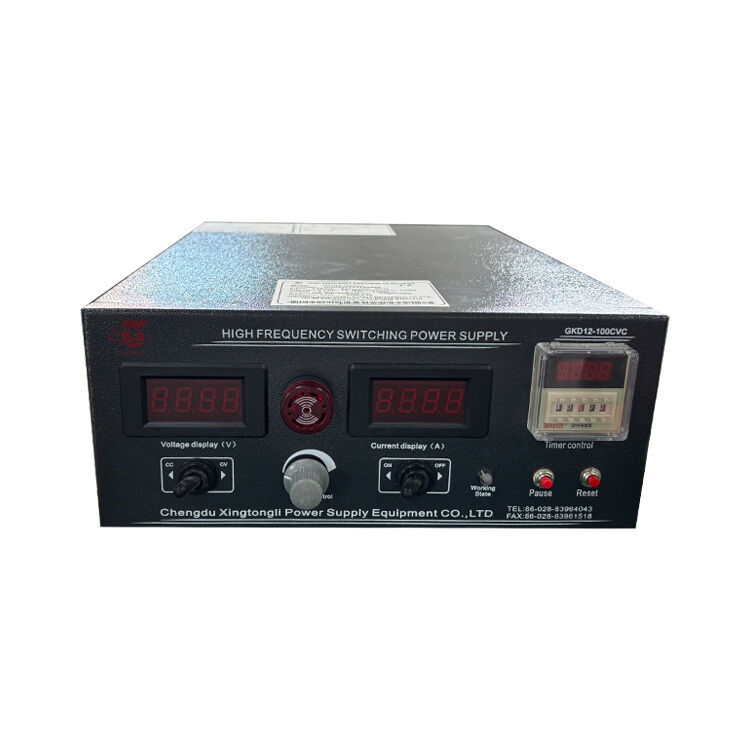

Name: 12V 100A DC Rectifier Power Supply for Tin Plating with Timer Relay Function 220V Single Phase Input Stable Pure DC Output
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD12-100CVC
Price: 700.00 USD
Availability: InStock

Merknaam:	Xingtongli
Modelnummer:	GKD12-100CVC
MOQ:	1 stks
Prijs:	600-800$/unit
Verpakking:	sterk multiplex standaard exportpakket
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

CE ISO9001

Levering vermogen:

200 reeksen/reeksen per maand

Markeren:

12V 100A DC rectifier power supply

tin plating power supply with timer relay

220V single phase electroplating power supply

Productomschrijving

12V 100A DC Rectifier Power Supply for Tin Plating with Timer Relay Function 220V Single Phase Input Stable Pure DC Output

This 12V 100A pure DC power supply is specially designed for tin plating applications, delivering stable and reliable output for consistent coating quality. Equipped with a built-in time relay control, it allows precise timing operation to improve production efficiency and process control. Powered by a 220V single-phase input, this rectifier ensures safe and efficient performance with smooth DC output, making it suitable for small to medium-scale electroplating lines and laboratory use.

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-100A continuously adjustable
- Power: Max 1.2KW (12V *100A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.

Markeringen:

gelijkstroom-gelijkrichter voor het galvaniseren

het galvaniseren gelijkrichter

platerenvoeding

Details Van De Producten

Huis > Producten >

Galvaniserende voeding

12V 100A DC Rectifier Power Supply for Tin Plating with Timer Relay Function 220V Single Phase Input Stable Pure DC Output

Alle Categorieën

Galvaniserende voeding

Elektrolysevoeding

Het anodiseren Voeding

Oxydatiegelijkrichter

Electropolishing Voeding

Elektrocoagulatievoeding

PCB-Gelijkrichter

Elektroforesevoeding

De Voeding van de hoge Frequentieomschakeling

Programmeerbare Gelijkstroom-Voeding

Hoogspanningsgelijkstroom Voeding

12V 100A DC Rectifier Power Supply for Tin Plating with Timer Relay Function 220V Single Phase Input Stable Pure DC Output

Merknaam:	Xingtongli
Modelnummer:	GKD12-100CVC
MOQ:	1 stks
Prijs:	600-800$/unit
Verpakking:	sterk multiplex standaard exportpakket
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Merknaam:

Xingtongli

Certificering:

CE ISO9001

Modelnummer:

GKD12-100CVC

Min. bestelaantal:

1 stks

Prijs:

600-800$/unit

Verpakking Details:

sterk multiplex standaard exportpakket

Levertijd:

5-30 werkdagen

Betalingscondities:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen:

200 reeksen/reeksen per maand

Markeren:

12V 100A DC rectifier power supply

tin plating power supply with timer relay

220V single phase electroplating power supply

Productomschrijving

12V 100A DC Rectifier Power Supply for Tin Plating with Timer Relay Function 220V Single Phase Input Stable Pure DC Output

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-100A continuously adjustable
- Power: Max 1.2KW (12V *100A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
