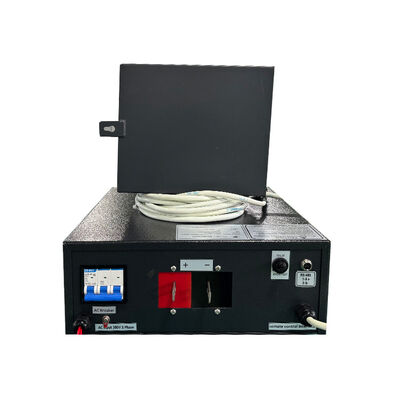

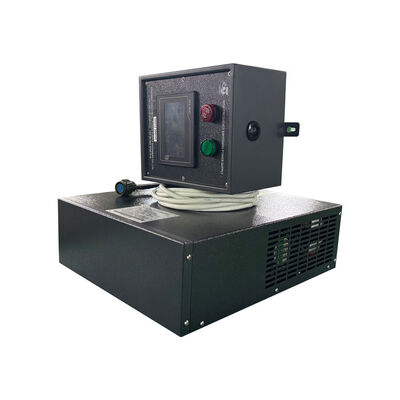

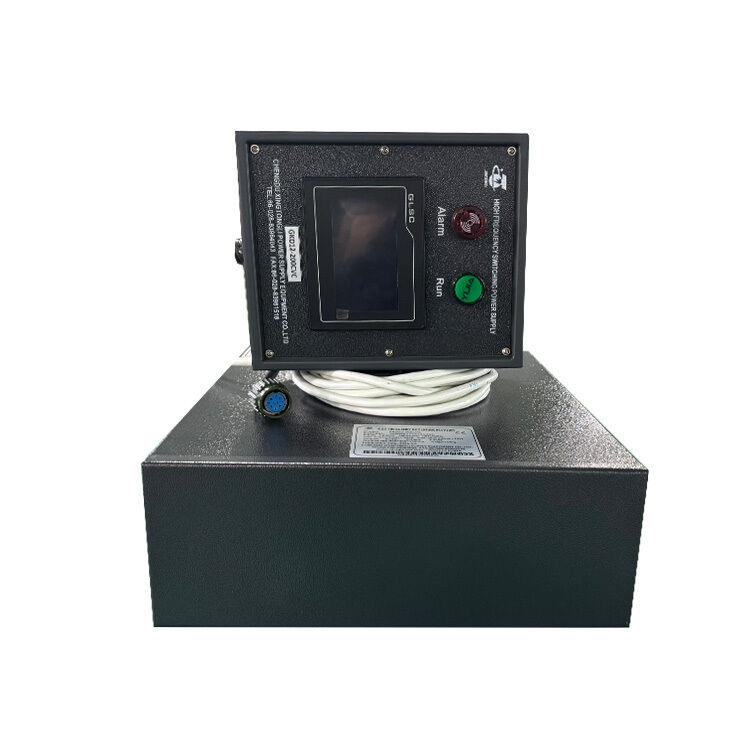

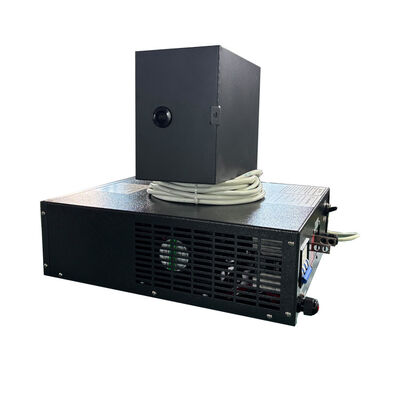

12V 200A Electroplating Rectifier 380V Three Phase CPU HMI DC Power Supply

Merknaam:	Xingtongli
Modelnummer:	GKD12-200CVC
MOQ:	1 STKS
Prijs:	850-1000$/unit
Verpakking:	sterk multiplex standaard exportpakket
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

CE ISO9001

Levering vermogen:

200 reeksen/reeksen per maand

Markeren:

12V 200A electroplating rectifier

three phase DC power supply

HMI electroplating power supply

Productomschrijving

12V 200A Electroplating Rectifier 380V Three Phase CPU HMI DC Power Supply

This 12V 200A electroplating rectifier is designed for industrial electroplating applications, featuring 380V three-phase input and advanced CPU + HMI intelligent control system. The rectifier provides stable DC output, precise current regulation, and user-friendly operation, making it suitable for chrome plating, nickel plating, zinc plating, copper plating, anodizing, and other surface treatment processes.

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-200A continuously adjustable
- Power: Max.2.4KW (12V *200A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
