12V 300A High Frequency Switching Power Supply for Water Treatment 220V Single Phase Input Programmable Touch Screen DC Rectifier

Merknaam:	Xingtongli
Modelnummer:	GKD12-300CVC
MOQ:	1 stks
Prijs:	1070-1200$/unit
Verpakking:	sterk multiplex standaard exportpakket
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

CE ISO9001

Levering vermogen:

200 reeksen/reeksen per maand

Productomschrijving

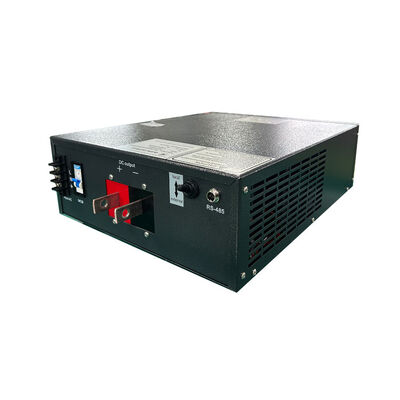

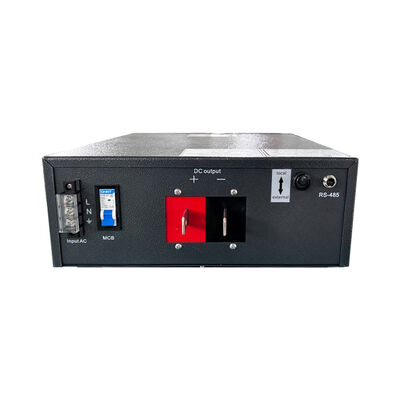

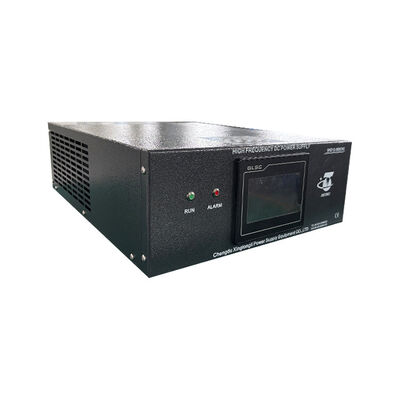

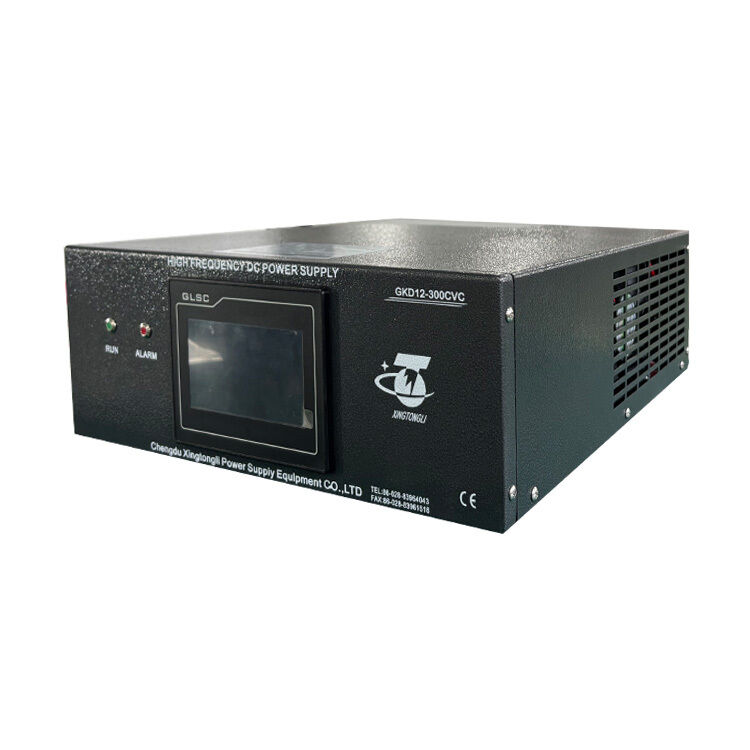

12V 300A High Frequency Switching Power Supply for Water Treatment 220V Single Phase Input Programmable Touch Screen DC Rectifier

This 12V 300A high frequency switching power supply is designed for water treatment applications. With 220V single-phase AC input, it provides stable and efficient DC output for electrocoagulation and other electrochemical processes. Equipped with a programmable touch screen control system, it allows precise voltage and current adjustment, easy parameter setting, and real-time monitoring. High efficiency, low ripple, and reliable performance make it ideal for small to medium-scale water treatment systems.

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-300A continuously adjustable
- Power: Max.3.6KW (12V *300A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
