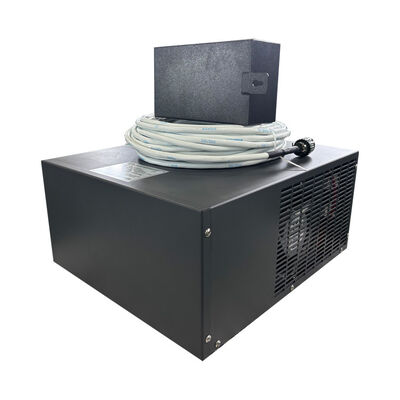

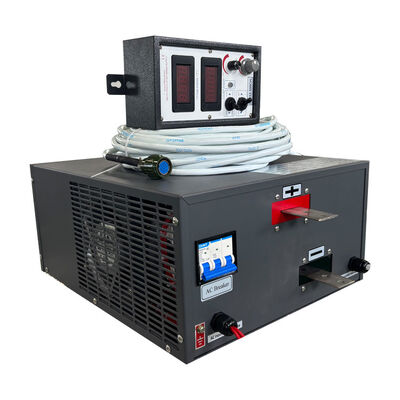

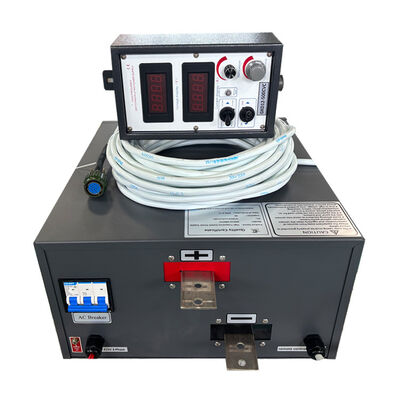

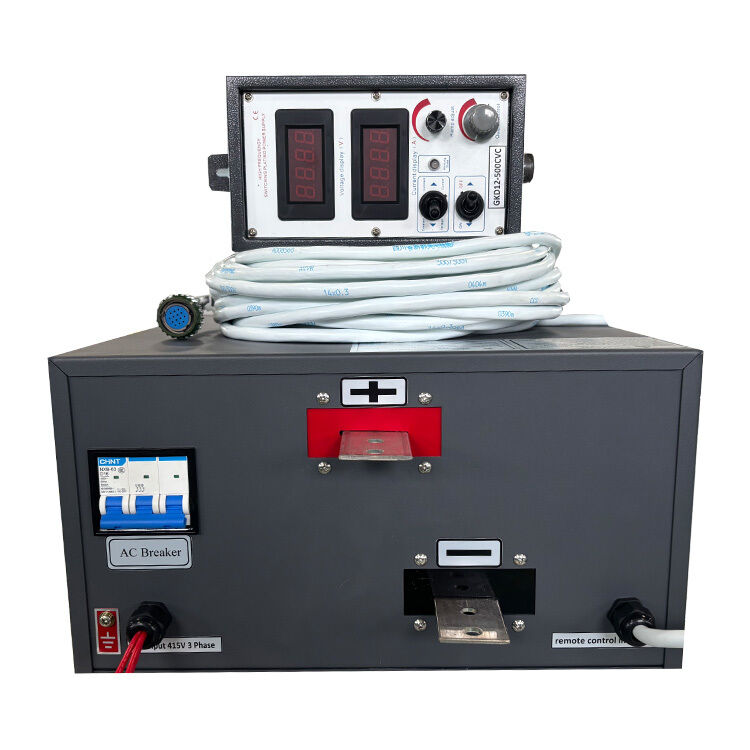

12V 500A IGBT Plating Rectifier Industrial High-Current DC Power Supply 415V 3-Phase Input

Merknaam:	Xingtongli
Modelnummer:	GKD12-500CVC
MOQ:	1 stks
Prijs:	600-800$/unit
Verpakking:	Strong multiplex standaard exportpakket
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

CE ISO9001

Levering vermogen:

200 set/sets per maand

Markeren:

12V 500A IGBT plating rectifier

industrial high-current DC power supply

3-phase electroplating power supply

Productomschrijving

12V 500A IGBT Plating Rectifier Industrial High-Current DC Power Supply 415V 3-Phase Input

This 12V 500A industrial rectifier features advanced IGBT technology, delivering stable and low-ripple DC output for electroplating, anodizing, electroforming, electrocoagulation, and water treatment applications. Designed for 415V three-phase input, it ensures high efficiency, fast response, and reliable long-term performance with full protection functions such as over-voltage, over-current, over-temperature, and grounding protection.

Technical Specifications

Input Power: three-phase 415V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-500A continuously adjustable
- Power: Max.6KW (12V *500A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
