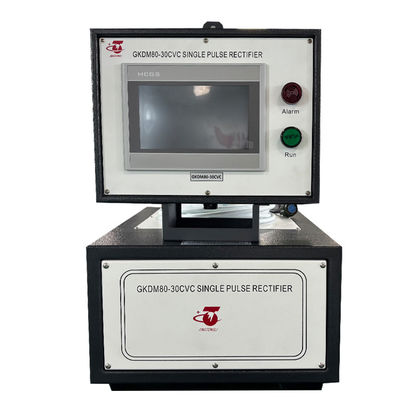

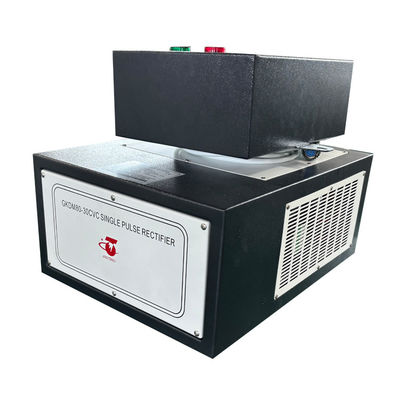

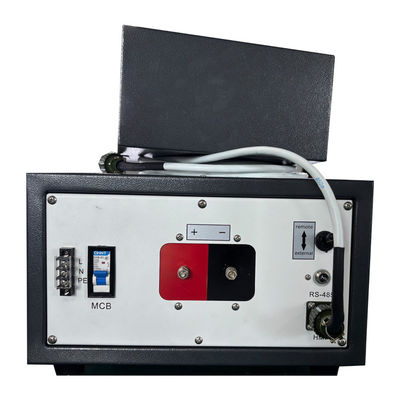

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

Merknaam:	Xingtongli
Modelnummer:	GKDM80-30CVC
MOQ:	1 stks
Prijs:	5500-6500$/unit
Verpakking:	Strong multiplex standaard exportpakket
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Certificering:

CE ISO9001

Levering vermogen:

200 set/sets per maand

Productomschrijving

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

High-performance 80V 30A single pulse power supply specially designed for jewelry electroplating. Provides stable and precise DC output, ensuring smooth plating, bright finishes, and consistent quality for small and delicate items. Compact, easy to operate, ideal for workshops and small-scale production.

Technical Specifications

Input Power: single-phase 240V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-80V continuously adjustable
- Current: DC 0-30A continuously adjustable
- Power: Max.2.4KW (80V ×30A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥89% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；remote box control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.

Markeringen:

Details Van De Producten

Huis > Producten >

Galvaniserende voeding

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

Alle Categorieën

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

Merknaam:	Xingtongli
Modelnummer:	GKDM80-30CVC
MOQ:	1 stks
Prijs:	5500-6500$/unit
Verpakking:	Strong multiplex standaard exportpakket
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Merknaam:

Xingtongli

Certificering:

CE ISO9001

Modelnummer:

GKDM80-30CVC

Min. bestelaantal:

1 stks

Prijs:

5500-6500$/unit

Verpakking Details:

Strong multiplex standaard exportpakket

Levertijd:

5-30 werkdagen

Betalingscondities:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen:

200 set/sets per maand

Productomschrijving

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

Technical Specifications

Input Power: single-phase 240V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-80V continuously adjustable
- Current: DC 0-30A continuously adjustable
- Power: Max.2.4KW (80V ×30A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥89% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；remote box control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
