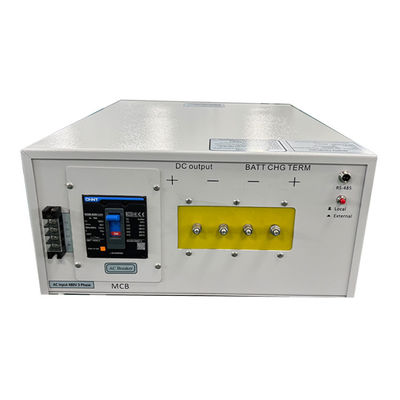

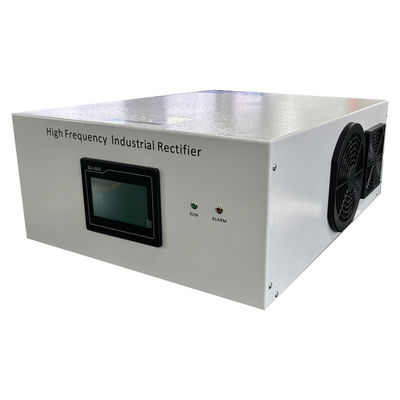

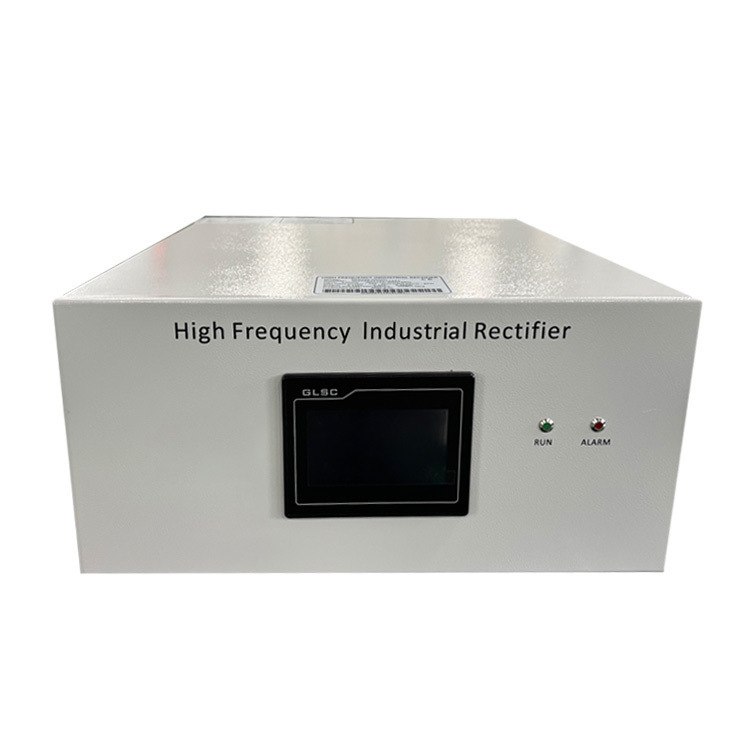

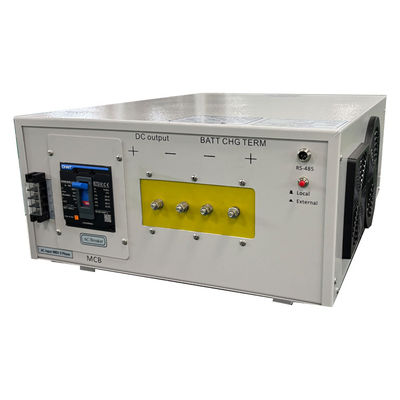

125V 50A High Frequency Industrial Rectifier Power Supply

Merknaam:	Xingtongli
Modelnummer:	GKD125-50CVC
MOQ:	1 stks
Prijs:	1250-1600$/unit
Verpakking:	Strong multiplex standaard exportpakket
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Certificering:

CE ISO9001

Levering vermogen:

200 set/sets per maand

Productomschrijving

125V 50A High Frequency Industrial Rectifier Power Supply

The 125V 50A high frequency industrial rectifier provides stable and efficient DC output, specially designed for electroplating, electrolysis, anodizing, and other industrial processes. With advanced high-frequency technology, it offers compact size, energy saving, low ripple, and reliable performance for continuous production.

Technical Specifications

Input Power: three-phase 480V AC ±5%, 50/60Hz
Output Capability:
- Voltage: DC 0-125V continuously adjustable
- Current: DC 0-50A continuously adjustable
- Power: Max.6.25KW (125V ×50A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
